Engine Storage & Return-to-Service Guide: Preservation, Renewal & RTS Workflow
📌 Why Engine Storage & RTS Procedures Matter
- Asset Protection: Improper storage leads to corrosion, seal degradation, and FOD contamination.
- Regulatory Compliance: OEM engine manuals prescribe specific storage and return-to-service (RTS) procedures.
- Value Preservation: Well-documented storage preserves engine value for sale, lease return, or future installation.
- Safety First: RTS inspections verify airworthiness before an engine returns to flight.
Aircraft engines are high-value assets that may require temporary or long-term storage due to fleet reductions, seasonal demand, maintenance queue backlogs, or asset trading. Proper storage — often called "preservation" or "mothballing" — is essential to prevent corrosion, contamination, and degradation of seals, bearings, and internal components. Equally critical is the return-to-service (RTS) process that ensures an engine is airworthy before installation and operation.
This guide provides a comprehensive framework for engine storage, preservation renewal intervals, and return-to-service inspection requirements based on industry best practices and OEM recommendations.
30-90 Days
Preservation Renewal Interval
30-70% RH
Ideal Storage Humidity
Borescope
Required Before RTS
OEM Manuals
Primary RTS Reference
Engine Storage Categories & Duration
| Storage Category | Typical Duration | Preservation Level | Common Use Case |
|---|---|---|---|
| Short-Term | Up to 30 days | Minimal (covers, plugs, desiccant) | Maintenance queue, temporary storage |
| Medium-Term | 1–6 months | Standard preservation (oil preservation, sealing) | Seasonal fleets, spare engines |
| Long-Term | 6 months – 2+ years | Full preservation (desiccant drying, nitrogen purge, rotation) | Storage of assets, trading inventory |
| Extended | >2 years | Specialized with regular inspections | Mothballed fleets, long-term reserve |
Engine Preservation Requirements
🛢️ Internal Preservation (Oil System)
- Fill with preservation oil per OEM specification
- Motor or rotate engine to distribute oil
- Preservation oil inhibits corrosion on internal surfaces
- Record oil type, quantity, and date
🔌 Sealing & Environmental Protection
- Install intake and exhaust covers
- Plug all ports, drains, and lines
- Desiccant bags with humidity indicator cards
- Seal fuel system (fuel stabilizer or fuel drain per OEM)
🌡️ Storage Environment
- Climate-controlled facility (10–30°C / 50–85°F)
- Relative humidity below 70% (ideal 30–50%)
- No direct sunlight, dust, or chemical fumes
- Vibration-free surface with proper support
📋 Documentation During Storage
- Storage start date and preservation method
- Preservation renewal records (dates and actions)
- Humidity indicator readings
- Any maintenance or inspections performed
Preservation Renewal Intervals & Inspections
Preservation is not a "set and forget" activity. Most OEMs require renewal of preservation measures at regular intervals, typically 30, 60, or 90 days depending on engine model and storage environment.
• Replace or recharge desiccant bags (check humidity indicator cards)
• Rotate engine manually or by motoring (per OEM procedure)
• Inspect seals, covers, and plugs for integrity
• Check for signs of corrosion, moisture, or FOD
• Record all actions in storage log
Return-to-Service (RTS) Workflow
RTS Inspection Checklist
🔍 Mandatory RTS Inspections
- ✅ Full borescope inspection of all modules
- ✅ Magnetic chip detector inspection
- ✅ Oil and fuel system flushing (per OEM if required)
- ✅ Filter element inspection
- ✅ Gearbox and accessory drive inspection
⚙️ Operational Checks
- ✅ Motoring check for abnormal sounds
- ✅ Dry motoring (ignition off) per procedure
- ✅ Start and idle checks
- ✅ Power assurance run or ground test
- ✅ Vibration monitoring and recording
📄 Documentation Requirements
- ✅ RTS inspection report signed by authorized certifier
- ✅ Logbook entry with storage dates and RTS date
- ✅ FAA 8130-3 or EASA Form 1 for return to service
- ✅ Borescope images and findings report
- ✅ AD/SB compliance status verified
🚩 Critical Red Flags During RTS Inspection
- Corrosion on rotating components — may require disassembly and repair
- Pitting or spalling on bearings — engine cannot return to service
- Seal degradation or hardening — oil leaks or contamination risk
- FOD found in gas path — requires further investigation and possibly overhaul
- Missing or incomplete storage records — may require accelerated inspection or overhaul per OEM
- Desiccant saturation — indicates moisture exposure, requires corrosion inspection
🔧 Need assistance with engine storage planning or RTS inspections? Contact Safe Fly Aviation's technical advisory team →
Engine Storage & RTS for Different Engine Families
| Engine Family | Common Storage Interval | Special RTS Considerations |
|---|---|---|
| CFM56 | Preservation renewal every 30–60 days | Borescope critical; HPT blade condition; LPT module inspection |
| LEAP-1A/1B | Strict humidity control; 90-day renewal | Composite fan blade inspection; 3D-printed fuel nozzles check |

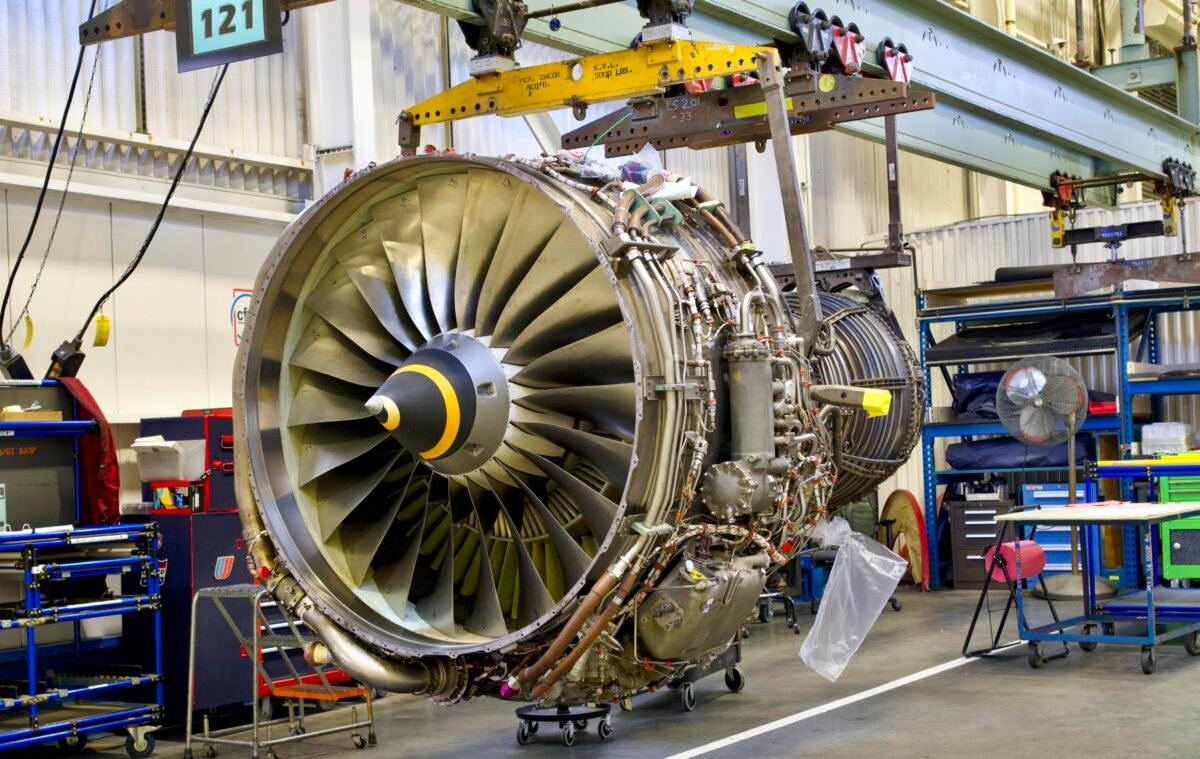

| V2500 | Standard 60-day renewal interval | Fan blade leading edge; HPC stage 1–3 condition |
| PT6A | 30-day renewal in humid environments | Compressor turbine wheel inspection; hot section |
| Rolls-Royce Trent | Per OEM specialized preservation | Extended dry motoring procedures; complex RTS workflow |
🔗 Related Technical Resources & Services
Engine Storage & Return-to-Service Support
Need assistance with engine preservation planning, RTS inspections, or storage documentation? Our technical advisory team can help coordinate storage programs and return-to-service requirements.
Conclusion: Storage is Active Asset Management
Engine storage is not passive — it is active asset management. Proper preservation, regular renewal, and documented RTS procedures protect multi-million dollar assets, ensure regulatory compliance, and enable rapid return to revenue service when needed. Always follow OEM-specific guidance, maintain detailed records, and engage qualified technical resources for storage and RTS activities.
FAQs: Engine Storage & Return-to-Service
How long can an engine remain in storage without preservation renewal?
Most OEMs require preservation renewal every 30–90 days depending on engine model and storage environment. Exceeding these intervals may require additional inspections or an overhaul before return to service.
What is the difference between short-term and long-term engine preservation?
Short-term preservation typically involves covers, plugs, and desiccant for up to 30 days. Long-term preservation adds oil preservation, engine rotation schedules, nitrogen purge, and more frequent monitoring.
Is a borescope inspection always required before RTS?
Yes, for any engine that has been in storage beyond a very short period (typically >7 days), a borescope inspection is required to verify internal condition before return to service.
Can Safe Fly Aviation help coordinate engine storage and RTS?
Yes. We provide technical advisory services for storage planning, connect with approved maintenance providers for preservation and inspections, and support RTS documentation requirements.
