Aircraft Brake and Wheel Assembly:

A Comprehensive guide to aircraft brake and wheel assembly systems, covering components, maintenance, and the latest carbon brake technology for aviation safety professionals.

Introduction

Aircraft brake and wheel assemblies represent one of the most critical safety systems in aviation, serving as the primary means of deceleration during landing operations and ground manoeuvring. Unlike automotive brake systems that primarily handle gradual deceleration, aircraft brake systems must rapidly dissipate enormous amounts of kinetic energy within seconds of touchdown, often while operating under extreme conditions.

The significance of these systems extends far beyond simple stopping power. Modern aircraft wheel and brake assemblies must withstand tremendous forces, extreme temperatures, and repetitive high-stress cycles while maintaining precise control and reliability. A Boeing 737 landing at maximum weight generates approximately 12 million foot-pounds of kinetic energy that must be absorbed primarily through the brake system within the landing roll distance.

Components of Aircraft Wheel and Brake Assembly

Aircraft Wheel Design: Engineering for Extreme Loads

Aircraft wheels differ fundamentally from automotive applications in their construction materials, load-bearing capacity, and operational requirements. Modern aircraft wheels are precision-engineered components manufactured from high-strength aluminium alloys or forged steel, designed to withstand loads that can exceed 50,000 pounds per wheel on large commercial aircraft.

The wheel construction typically features a two-piece design consisting of an outboard wheel half and an inboard wheel half, bolted together with high-tensile bolts. This design allows for tire mounting and provides access to the brake assembly. The wheel hub incorporates precise bearings that must operate reliably under extreme loads while maintaining smooth rotation throughout temperature variations from -65°F at cruise altitude to over 300°F during heavy braking operations.

Load distribution is critical in aircraft wheel design. The wheel must transfer vertical loads from the aircraft structure through the tire to the ground while simultaneously handling side loads during crosswind landings and turning manoeuvres. The spoke pattern and rim design are optimised using finite element analysis to ensure maximum strength-to-weight ratio while providing adequate ventilation for brake cooling.

Aircraft Tire Technology: Bias-Ply vs Radial Construction

Aircraft tires operate under conditions far more demanding than automotive applications. They must accelerate from zero to landing speed (typically 150-180 mph) instantaneously upon touchdown, while supporting loads of up to 50,000 pounds per tire.

Bias-Ply Tires remain the standard for most commercial aircraft applications. These tires feature multiple layers of fabric cord arranged at alternating angles (typically 30-40 degrees) to the tire centerline. This construction provides exceptional strength and durability under the extreme stress concentrations experienced during landing impacts. The bias-ply design offers superior resistance to foreign object damage and maintains structural integrity even with significant tread wear.

Radial Tires are increasingly used in specific applications, particularly on newer aircraft designs. Radial construction features cord plies running from bead to bead at 90 degrees to the centerline, with additional belt plies under the tread area. While radial tires offer advantages in fuel efficiency due to lower rolling resistance and improved tread life, they require more sophisticated wheel designs and are typically more expensive.

The tire pressure in aircraft applications ranges from 150 to over 300 PSI, compared to 30-35 PSI in automotive applications. This high pressure is necessary to support the extreme loads while minimising tire footprint and rolling resistance.

Brake System Types: Evolution of Aircraft Brake Technology

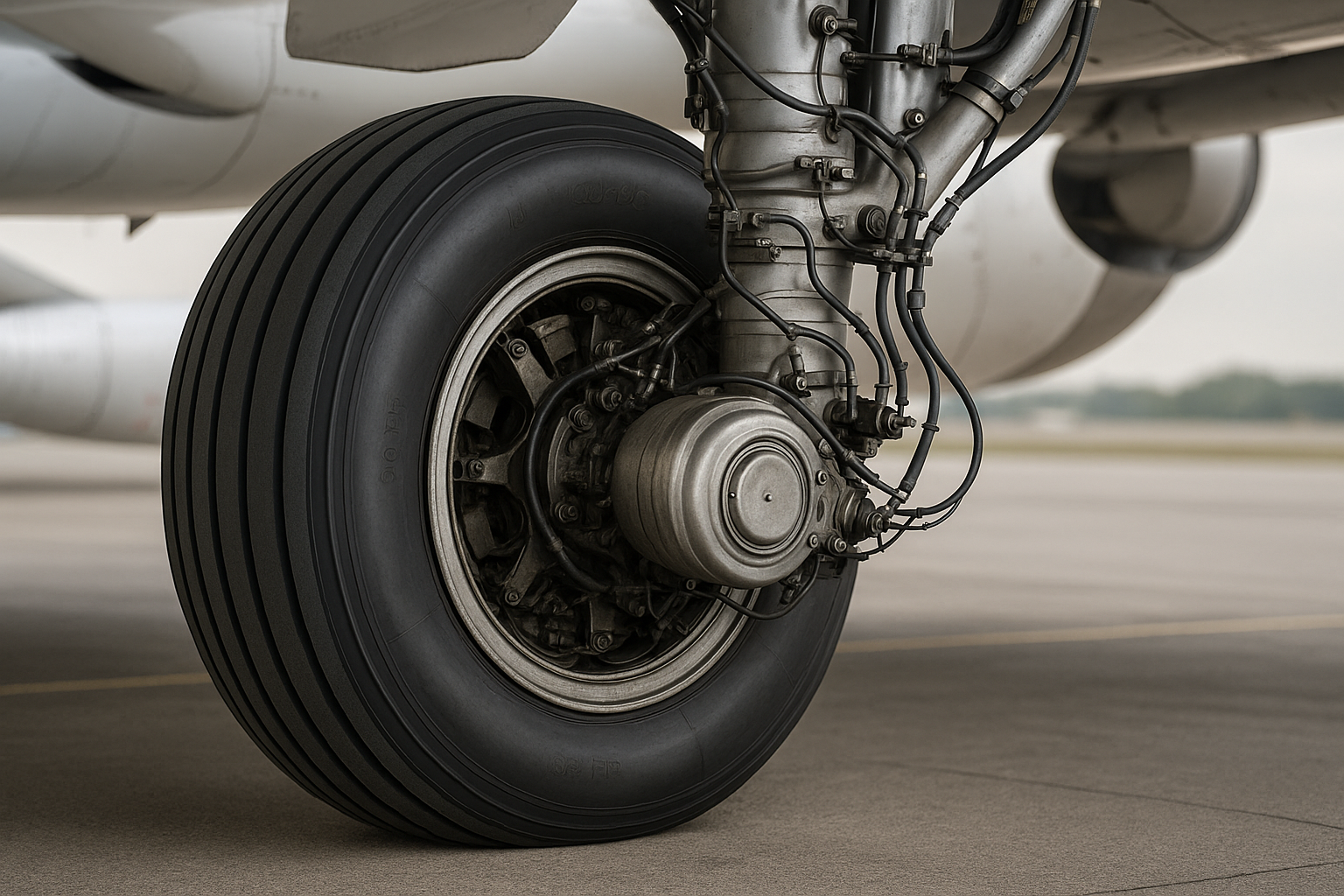

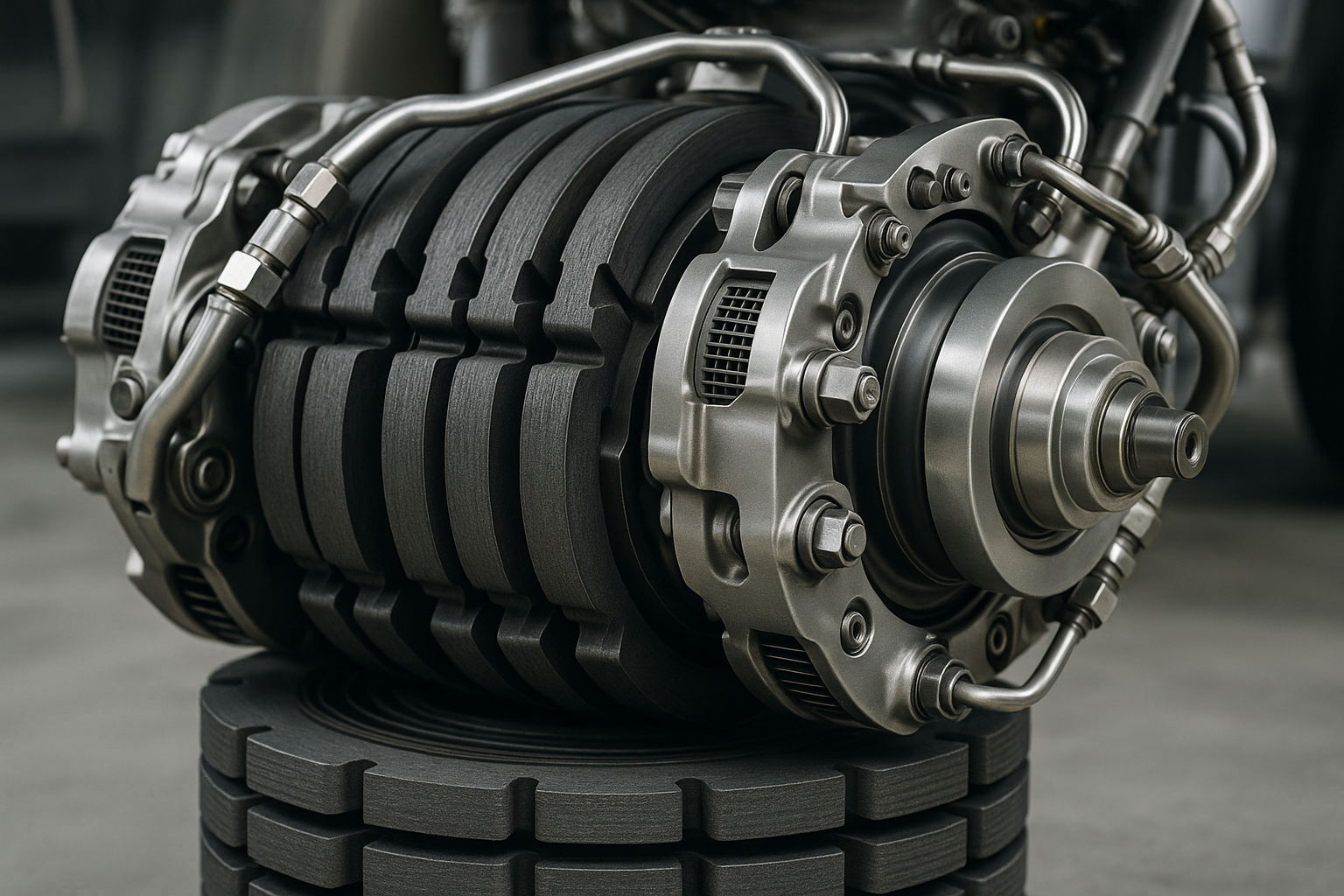

Multiple-Disk Brake Assemblies represent the current standard for commercial aircraft. These systems feature multiple brake discs (rotors) keyed to the wheel hub, with stationary brake plates (stators) positioned between them. This configuration provides maximum friction surface area within the constraints of the wheel assembly space.

Steel Brake Discs were the traditional choice for aircraft brake systems. Steel discs offer excellent durability, predictable performance characteristics, and lower initial cost. However, steel brakes are heavier and have limited heat capacity compared to modern alternatives. Steel brake systems typically operate effectively up to temperatures of 1,000°F before experiencing brake fade.

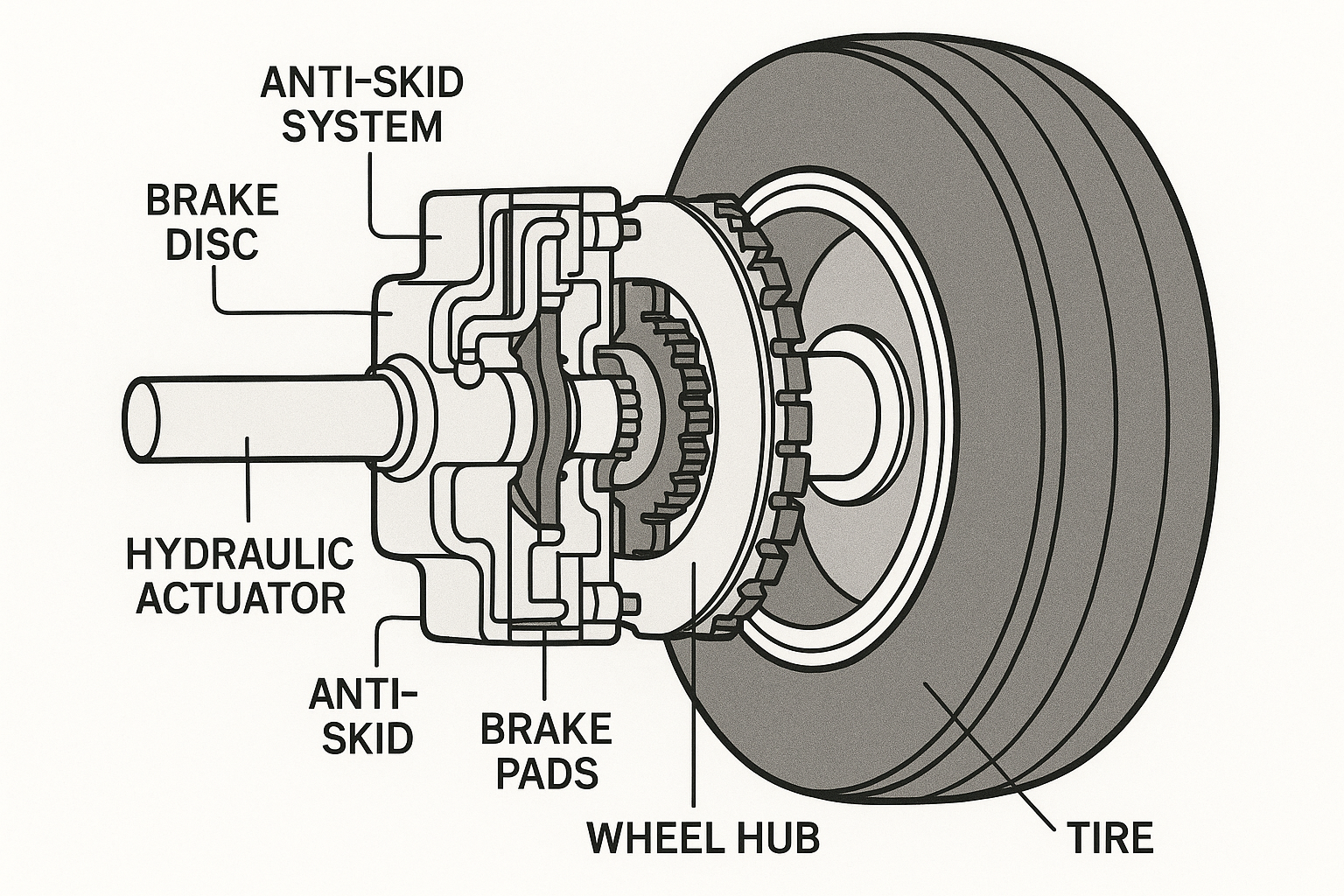

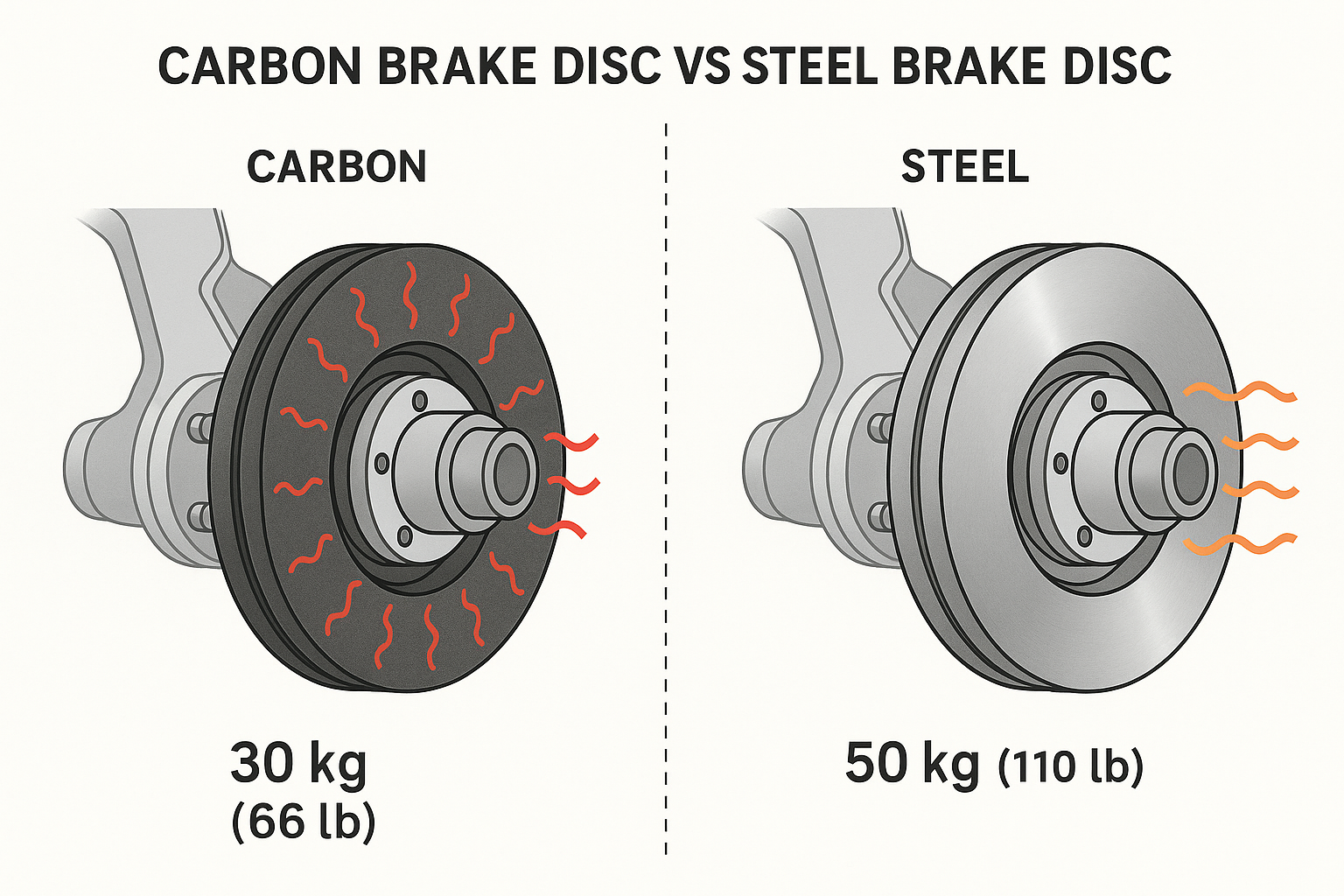

Carbon Brake Systems represent the current state-of-the-art in aircraft brake technology. Carbon-carbon composite brake discs offer exceptional performance advantages, including:

• Weight Reduction: Carbon brakes are approximately 40% lighter than equivalent steel brake systems, providing significant fuel savings and increased payload capacity
• Heat Capacity: Carbon brakes can operate effectively at temperatures exceeding 2,000°F without fade
• Durability: Carbon brake discs typically last 3-5 times longer than steel discs
• Performance: Superior modulation and consistent performance across temperature ranges

Anti-Skid Systems: Precision Control Technology

Modern aircraft anti-skid systems represent sophisticated electronic control systems that prevent wheel lockup during braking operations. These systems use wheel speed sensors to monitor individual wheel rotation rates, comparing them to calculate slip ratios in real-time.

The anti-skid control unit processes sensor data and modulates brake pressure through servo valves to maintain optimal slip ratios (typically 10-15%) for maximum braking efficiency. Advanced systems incorporate runway condition sensors and landing gear load information to optimise braking performance for specific conditions.

Modern anti-skid systems also include touchdown protection, which prevents brake application until the aircraft has contacted the runway, and locked wheel protection, which automatically releases brake pressure if a wheel stops rotating during rollout.

Working Mechanism: The Physics of Aircraft Braking

Step-by-Step Braking Process During Landing Roll

The aircraft braking process begins before touchdown with system preparation. Upon weight-on-wheels detection (typically through landing gear compression switches), the anti-skid system activates, and brake application becomes available.

Initial Contact Phase: As the pilot applies brake pressure through the rudder pedals or brake handle, the master cylinder pressure increases. This pressure is transmitted through the hydraulic system to the brake actuators (typically 6-8 pistons per brake assembly on commercial aircraft).

Friction Generation: The hydraulic actuators force the brake pads against the rotating brake discs. The friction coefficient between the pad and disc materials generates the braking torque. Modern brake materials maintain consistent friction coefficients across wide temperature ranges, ensuring predictable braking performance.

Energy Dissipation: The kinetic energy of the aircraft is converted to thermal energy through friction. For a typical commercial aircraft landing, brake temperatures can rise from ambient to over 1,000°F within 30-60 seconds. This represents energy dissipation rates of millions of BTUs per minute.

Anti-Skid Intervention: Throughout the braking process, the anti-skid system continuously monitors wheel speeds and modulates brake pressure to prevent wheel lockup. The system can cycle brake pressure on and off up to 15 times per second to maintain optimal braking efficiency.

Hydraulic System Integration and Brake Actuation

Aircraft brake systems typically operate from the aircraft’s central hydraulic systems, usually providing redundancy through multiple independent hydraulic sources. Modern commercial aircraft feature hydraulic system pressures of 3,000 PSI, which is stepped down through brake metering valves to give the precise pressure control necessary for effective braking.

The hydraulic brake actuator design incorporates multiple pistons arranged around the brake assembly periphery. Each piston applies force to brake pads or pressure plates, distributing the clamping force evenly across the brake disc surface. The actuator design includes return springs to ensure positive pad retraction when brake pressure is released, preventing drag and unnecessary wear.

Heat Dissipation and Cooling Requirements

Heat management represents one of the most critical aspects of aircraft brake design. During a maximum-energy stop, brake temperatures can exceed 2,000°F, requiring sophisticated heat dissipation strategies.

Conductive Cooling: Heat is conducted from the brake discs through the wheel hub to the tire and wheel assembly. The wheel design incorporates cooling fins and ventilation passages to promote heat transfer.

Convective Cooling: Air circulation through the wheel assembly provides convective cooling. Many aircraft incorporate brake cooling fans that operate during ground operations to accelerate cooling between flights.

Radiative Cooling: At high temperatures, thermal radiation becomes a significant heat dissipation mechanism. Carbon brake discs are particularly effective at radiative cooling due to their high emissivity.

The brake system must be designed to handle multiple stop capability, meaning the ability to perform additional maximum-energy stops after the initial landing without exceeding safe temperature limits.

Maintenance & Safety Considerations

Daily Wear and Tear: Understanding Brake System Degradation

Aircraft brake systems experience wear through multiple mechanisms that maintenance personnel must monitor continuously. Normal brake pad wear occurs through the friction process, with wear rates varying significantly based on operational factors including aircraft weight, runway conditions, pilot technique, and ambient conditions.

Brake disc wear occurs through several processes, including oxidation, thermal cycling stress, and mechanical wear. Carbon brake discs can experience delamination or fibre pullout under extreme conditions, while steel discs may develop heat checks or thermal cracks.

The extreme forces accelerate tire wear on aircraft during landing operations. The instantaneous acceleration from zero to landing speed creates significant heat buildup and tread wear. Additionally, crosswind landings and aggressive braking can cause uneven tire wear patterns that require careful monitoring.

Inspection Intervals and Safety Checks

Aircraft brake system maintenance follows strict regulatory requirements established by aviation authorities worldwide. Daily visual inspections include checking brake disc thickness, pad wear, hydraulic fluid levels, and tire condition. These inspections are performed by qualified maintenance personnel using calibrated measuring tools.

Progressive Inspections occur at regular flight hour intervals (typically every 50-100 flight hours) and include detailed measurements of brake component wear, hydraulic system pressure tests, and anti-skid system functional checks. These inspections require specialised test equipment and certified maintenance procedures.

Overhaul Requirements are mandated at specific intervals or wear limits, whichever occurs first. Brake assemblies are removed from the aircraft and sent to certified repair facilities, where components are completely disassembled, inspected using non-destructive testing methods, and rebuilt to original specifications.

The inspection process includes precise measurement of brake disc thickness at multiple points, checking for heat damage, cracks, or delamination. Brake pads are measured for remaining material thickness and inspected for uneven wear patterns that might indicate system problems.

Challenges in Extreme Weather and High-Cycle Operations

Aircraft brake systems must operate reliably across extreme environmental conditions. Cold weather operations present challenges, including hydraulic fluid viscosity changes, brake pad hardening, and ice accumulation in brake assemblies. Arctic operations may require preheating systems to ensure proper brake function.

High-temperature operations stress brake systems through reduced air density (affecting cooling), increased brake energy requirements, and accelerated component wear. Desert operations often require modified cooling procedures and increased inspection frequencies.

High-cycle operations, such as those experienced by regional aircraft or training aircraft, accelerate component wear and require modified maintenance intervals. These operations may require more frequent brake changes and enhanced monitoring of system performance trends.

Contaminated runway conditions (water, snow, ice, or rubber deposits) significantly affect brake performance and increase wear rates. Anti-skid systems must be appropriately calibrated for these conditions, and maintenance personnel must understand the impact on component life.

Latest Trends & Technology in Aircraft Brake Systems

Carbon Brake Technology: The Future of Aircraft Braking

The evolution from steel to carbon brake technology represents one of the most significant advances in aircraft brake systems over the past three decades. Modern carbon-carbon composite brake discs are manufactured using advanced fibre lay-up techniques and specialised carbonisation processes that create materials with exceptional thermal and mechanical properties.

Next-Generation Carbon Materials are being developed with enhanced thermal conductivity and improved oxidation resistance. These materials extend brake life in high-temperature operations and provide more consistent performance across varying environmental conditions.

Hybrid Brake Technologies combine carbon brake discs with advanced metallic brake pads or incorporate ceramic matrix composites to optimise performance characteristics for specific aircraft applications.

Innovative Brake Monitoring Systems

Modern aircraft increasingly incorporate sophisticated brake monitoring systems that provide real-time performance data and predictive maintenance capabilities. These systems use multiple sensors to monitor brake temperatures, wear rates, hydraulic pressures, and system performance parameters.

Brake Temperature Monitoring Systems (BTMS) provide cockpit displays of individual brake temperatures, allowing pilots to manage brake energy during taxi operations and implement appropriate cooling procedures. Advanced systems incorporate predictive algorithms that calculate optimal taxi speeds and cooling requirements.

Wireless Sensor Technologies are being integrated into brake assemblies to provide continuous monitoring of brake component condition. These sensors can detect early signs of component degradation and transmit data to maintenance systems for analysis.

Predictive Maintenance Systems use machine learning algorithms to analyse brake performance trends and predict component replacement requirements. These systems can optimise maintenance schedules and reduce unexpected failures.

Advances in Materials and Weight Reduction

Research continues into advanced materials that offer improved performance while reducing weight and maintenance requirements. Ceramic Matrix Composites (CMCs) show promise for brake applications, offering the heat resistance of carbon materials with enhanced oxidation resistance.

Advanced Pad Materials incorporate new friction materials that provide consistent performance characteristics across wider temperature ranges while reducing wear rates. These materials often feature embedded wear indicators that provide real-time wear monitoring.

Integrated Brake-Wheel Designs represent emerging technology that integrates brake components directly into the wheel structure, reducing weight and improving heat dissipation while simplifying maintenance procedures.

Conclusion

Aircraft brake and wheel assemblies represent critical safety systems that continue to evolve through advanced materials, sophisticated control systems, and innovative monitoring technologies. The progression from steel to carbon brake systems demonstrates the aviation industry’s commitment to improving performance while reducing environmental impact through weight reduction and enhanced efficiency.

Modern brake systems must balance competing requirements, including performance, reliability, maintainability, and cost-effectiveness, while operating under the most demanding conditions in transportation. The integration of advanced materials science, precision manufacturing, and intelligent monitoring systems ensures that these critical safety systems continue to meet the evolving demands of modern aviation.

Understanding these complex systems is essential for aviation professionals involved in aircraft operations, maintenance, and safety management. As aircraft continue to grow in size and operational demands increase, brake and wheel technology will continue advancing to meet these challenges while maintaining the highest safety standards.

The future of aircraft brake technology lies in smart systems that combine advanced materials with intelligent monitoring and control systems, providing unprecedented levels of performance, safety, and efficiency. Safe Fly Aviation remains at the forefront of these technological advances, providing expert consultation and services to ensure optimal aircraft brake system performance and safety.
