Robinson R66 – Complete Helicopter Guide
SafeFly Aviation – Your trusted partner in premium aviation solutions since 2010.
Light turbine single-engine helicopter · The affordable turbine solution
The Robinson R66 is Robinson Helicopter Company's first turbine-powered model, bridging the gap between piston helicopters and more expensive turbine alternatives. With five seats, a Rolls-Royce RR300 engine, and a spacious cabin, the R66 offers turbine smoothness and reliability at a fraction of the cost of competitors. It is ideal for private owners, flight schools, utility operators, and light commercial applications, combining the familiar Robinson simplicity with turbine performance.
Robinson R66 – the affordable turbine helicopter
Overview
The Robinson R66 is a light, five-seat, single-engine turbine helicopter designed and manufactured by Robinson Helicopter Company. Announced in 2007 and first flown on 7 November 2007, it was Robinson's first turbine-powered product, designed to extend the company's product range and compete with larger helicopters from Bell and Eurocopter.
The R66 received FAA certification on 25 October 2010, with EASA certification following in April 2014. As of August 2020, over 1,000 units had been built, and the fleet has accumulated more than 1.2 million flight hours without a single reported in-flight engine failure.
Built on the proven design of the R44, the R66 adds a fifth seat, a large baggage compartment, and turbine power with significantly improved high-altitude performance.
Specifications
Performance & Capabilities
The R66 is powered by a single Rolls-Royce RR300 turboshaft engine, producing 300 shp and derated to 270 shp for takeoff (five-minute rating) and 224 shp for maximum continuous operation. This engine, based on the proven 250-series, delivers turbine smoothness and reliability at significantly lower operating costs than competing turbine helicopters.
The helicopter cruises at approximately 120 knots (222 km/h) with a never-exceed speed of 140 knots. It has a maximum range of 325 nautical miles (375 statute miles) with no reserve, and a service ceiling of 14,000 feet. The R66 can hover both in and out of ground effect at over 10,000 feet at maximum gross weight, making it well-suited for high-altitude operations.
The R66 features a two-bladed main rotor system, a T-bar cyclic control, and an open cabin configuration, sharing many design elements with the R44.
R66 in hangar – clean, simple, and service-friendly design
Cabin & Avionics
Spacious and Versatile Cabin
The R66 offers a comfortable cabin for five occupants – one pilot and four passengers. Cabin width is 58 inches (1.47 m), with a cabin height of approximately 4 ft 3 in (1.3 m) and cabin length of 6 ft 7 in (2.0 m). The cabin volume is approximately 50 cubic feet.
The R66 features a large separate cargo compartment with 18 cubic feet of baggage volume, capable of carrying up to 300 lb – large enough for golf clubs or several suitcases. The interior features energy-absorbing leather seats as standard.

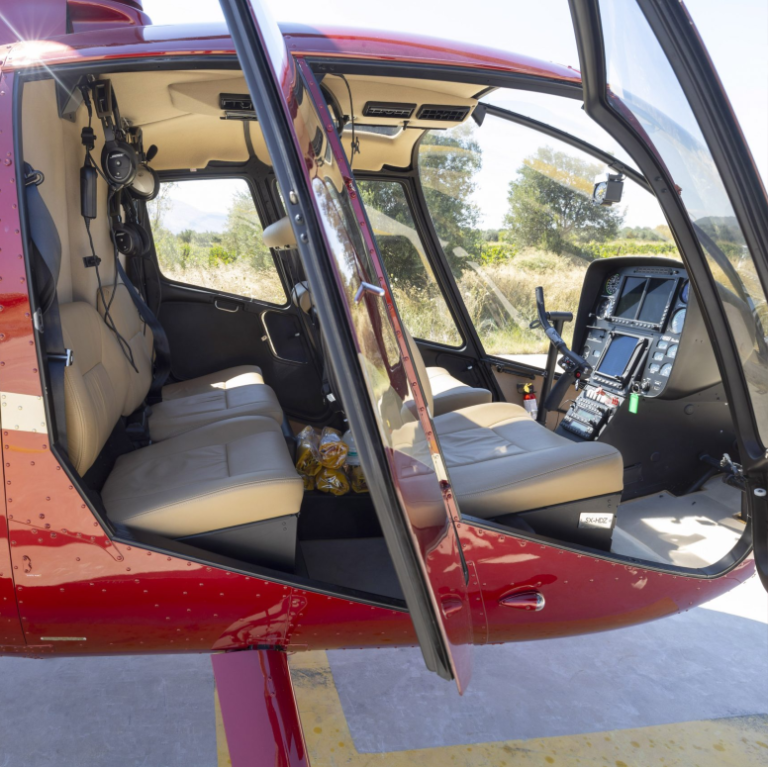

Five-seat cabin configuration with comfortable ergonomics
Advanced Avionics
The R66 NxG series comes standard with a full Garmin glass cockpit, hand-stitched leather seating, and the industry's first two-axis autopilot in a Robinson helicopter. The avionics suite can be customised for different operational needs, from private use to commercial missions. The helicopter also features an impact-resistant windshield as standard equipment.
Modern glass cockpit with Garmin avionics and two-axis autopilot
Mission Profiles
The R66 is a versatile platform suitable for a wide range of missions:
✈️ Private & Personal Transport
Affordable turbine helicopter for private owners seeking turbine performance at a fraction of the cost of competitors.
🎓 Flight Training
Ideal for turbine transition training and commercial pilot development with simple, forgiving handling characteristics.
🛠️ Utility & Light Commercial
External load capability (up to 1,200 lb) and spacious cabin make it suitable for light utility and commercial operations.
🚑 Emergency Medical Services (EMS)
Can be configured for light EMS roles with stretcher capability and medical equipment.
👮 Law Enforcement
Police version available with FLIR camera, searchlight, and external PA system.
🚁 Aerial Survey & Observation
Stable platform with excellent visibility for aerial survey, photography, and observation missions.
🏔️ High-Altitude Operations
Exceptional hover performance above 10,000 ft makes it ideal for mountain and high-altitude work.
🌊 Marine Operations
Turbine Marine version available with pop-out floats for over-water safety.
Operating Economics
The R66 offers some of the lowest operating costs in the turbine helicopter segment. The following estimates are based on typical operator data and may vary with fuel prices, maintenance schedules, and utilisation.
All figures are estimates. Actual costs depend on location, insurance, crew, and utilisation.
Maintenance Overview
The R66 is designed with simplicity and low maintenance in mind, building on Robinson's reputation for easy serviceability.
- Inspection intervals: 100-hour or 12-month inspections (whichever comes first), with 200-hour and 400-hour additional checks.
- Engine overhaul: The RR300 engine has a TBO (Time Between Overhaul) of 2,000 hours, with a 3,000-hour life limit.
- Airframe life: The R66 airframe is designed for 12,000 hours or 20,000 cycles, whichever comes first.
- Parts availability: Robinson's global dealer network ensures ready access to spares and factory support.
- Maintenance costs: Typically $90–$120 per hour for routine maintenance, excluding engine reserves.
- Engine support: Rolls-Royce provides comprehensive support through its global service network, including the Engine Management Program (EMP).
For a detailed maintenance program, consult the SafeFly Aviation team or your local Robinson service centre.
Pros & Cons
✅ Advantages
- Lowest operating costs in the turbine helicopter segment
- Turbine reliability with over 1.2 million flight hours without engine failure
- Five seats with spacious cabin and large baggage compartment
- Excellent high-altitude performance (hover above 10,000 ft)
- Simple, proven design based on the R44
- Modern Garmin glass cockpit available with two-axis autopilot
- Strong global dealer and service network
⚠️ Considerations
- Single-engine (no twin-engine redundancy)
- Primarily VFR-only (two-crew required for IFR)
- Smaller cabin than medium twins
- Limited payload compared to larger utility helicopters
- No retractable landing gear option
R66 vs Competitors
How does the R66 compare with other light single-turbine helicopters?
| Model | Max Speed | Range | Passengers | Max Takeoff Weight | Key Strengths |
|---|---|---|---|---|---|
| Robinson R66 | 140 kt | 325 nm | 5 | 2,700 lb | Lowest operating costs, turbine reliability |
| Robinson R44 | 130 kt | 300 nm | 4 | 2,500 lb | Lower acquisition cost, piston engine |
| Bell 206B JetRanger | 130 kt | 300 nm | 5 | 3,200 lb | Proven utility, larger payload |
| Airbus H125 (AS350) | 140 kt | 360 nm | 6 | 4,960 lb | Larger cabin, higher payload |
| MD 500E | 152 kt | 210 nm | 5 | 3,000 lb | Speed, agility, military heritage |
The R66 positions itself as the most affordable turbine helicopter on the market, offering a compelling value proposition for private owners, flight schools, and light commercial operators.
For a dedicated comparison, see our R66 vs Bell 206 and R66 vs H125 guides.
Who Should Buy the R66?
The R66 is an ideal choice for several types of operators:
- Private owners – Seeking a reliable, low-cost turbine helicopter for personal travel and recreation.
- Flight schools – Offering turbine transition training and commercial pilot development.
- Utility operators – Needing a light, cost-effective platform for survey, photography, or light lifting.
- Agricultural operators – For crop spraying and livestock management with the utility package.
- Tourism operators – Offering scenic flights with five-seat capacity and low operating costs.
- Law enforcement agencies – Looking for a budget-friendly surveillance and patrol platform.
- EMS providers – Requiring a fast, stable air ambulance for light patient transport.
If you fit any of these profiles, the R66 deserves serious consideration. Contact SafeFly Aviation to discuss your mission requirements.
Development Timeline
Global Operators
The R66 is operated by a diverse range of organisations and individuals worldwide:
- Private Owners: One of the most popular turbine helicopters for personal use, offering a step up from piston aircraft.
- Flight Schools: Used for turbine transition training and commercial pilot development.
- Utility Operators: Light commercial operators, survey companies, and agricultural users.
- Law Enforcement: Police versions in service with FLIR, searchlight, and PA systems.
- EMS Providers: Light air ambulance operators in various regions.
- Military: Used for training and light utility roles in several armed forces.
Frequently Asked Questions
How many passengers does the Robinson R66 carry?
The R66 seats up to 5 people – 1 pilot and 4 passengers – in a spacious cabin configuration.
What is the maximum range of the R66?
The R66 has a maximum range of approximately 325 nautical miles (375 statute miles) with no reserve.
Is the R66 certified for IFR operations?
The R66 is primarily designed for VFR operations, though it can be equipped with advanced avionics. Two crew are required for IFR operations.
What engine powers the R66?
The R66 is powered by a single Rolls-Royce RR300 turboshaft engine, producing 300 shp, derated to 270 shp for takeoff and 224 shp continuous.
What is the cruise speed of the R66?
The R66 cruises at approximately 120 knots (138 mph) with a maximum speed (Vne) of 140 knots.
How does the R66 compare with the Robinson R44?
The R66 is larger, faster, and smoother than the piston-powered R44. It adds a fifth seat, a large baggage compartment, and turbine power with significantly improved high-altitude performance.
What is the operating cost of the R66?
The R66 has a direct operating cost of approximately $380–$450 per hour, making it one of the most affordable turbine helicopters to operate.
Is the R66 suitable for utility and external load operations?
Yes. The R66 Utility version features a standard cargo hook for external loads up to 1,200 lb (544 kg), with a maximum gross weight of 2,900 lb for external load operations.
Experience the Robinson R66 with SafeFly Aviation
At SafeFly Aviation, we are committed to providing our clients with the best aviation solutions. The Robinson R66 offers an unbeatable combination of turbine performance, low operating costs, and proven reliability.
Contact us today to learn more about the R66 and how it can meet your aviation needs.
Acquisition support · Helicopter management · Training
Conclusion
The Robinson R66 has established itself as the most affordable turbine helicopter on the market, offering a compelling blend of performance, reliability, and value. With over 1,000 units delivered and more than 1.2 million flight hours without a single in-flight engine failure, the R66 has proven itself as a dependable platform for private owners, flight schools, and commercial operators alike.
Whether you're stepping up from a piston helicopter, looking for turbine training, or seeking a cost-effective utility solution, the R66 delivers turbine performance at a fraction of the cost of its competitors.
At SafeFly Aviation, we are proud to offer the R66 as part of our fleet, and we are confident that it will exceed your expectations. Explore the possibilities with the R66 and elevate your aviation experience. Visit safefly.aero today to schedule a consultation or request a demo flight.
