Leonardo AW169 – Complete Helicopter Guide
Safe Fly Aviation – Your trusted partner in premium aviation solutions since 2010.
Light-intermediate twin-engine helicopter · Next-generation multi-role platform
The Leonardo AW169 is a next-generation light-intermediate twin-engine helicopter designed for versatility across VIP transport, emergency medical services (EMS), search and rescue (SAR), offshore support, law enforcement, and military roles. It combines a spacious cabin (up to 10 passengers), advanced Garmin G5000H avionics, excellent range (440 nm), and unique features like APU mode and all-undercarriage options, making it a leading choice in its class.

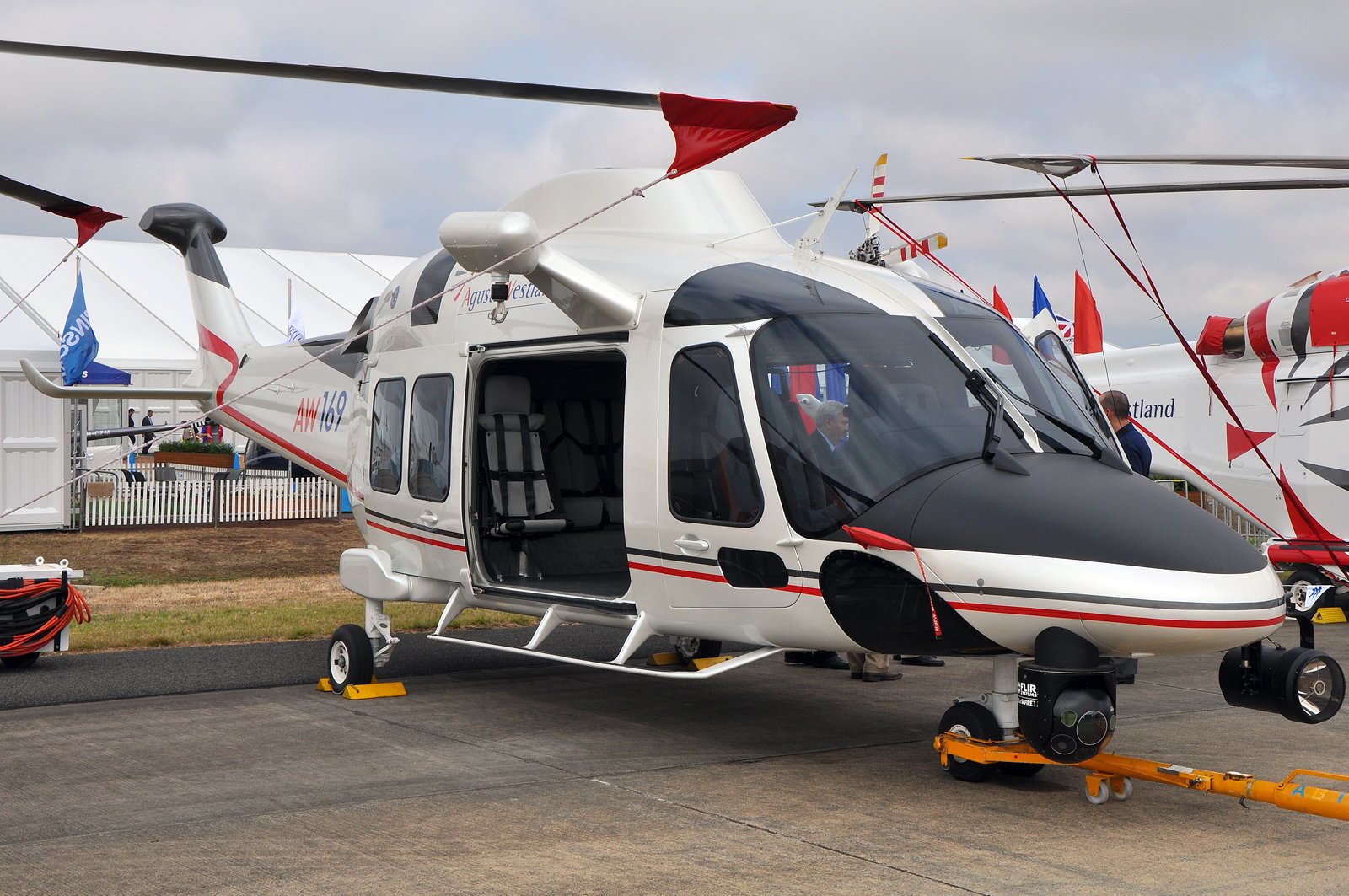

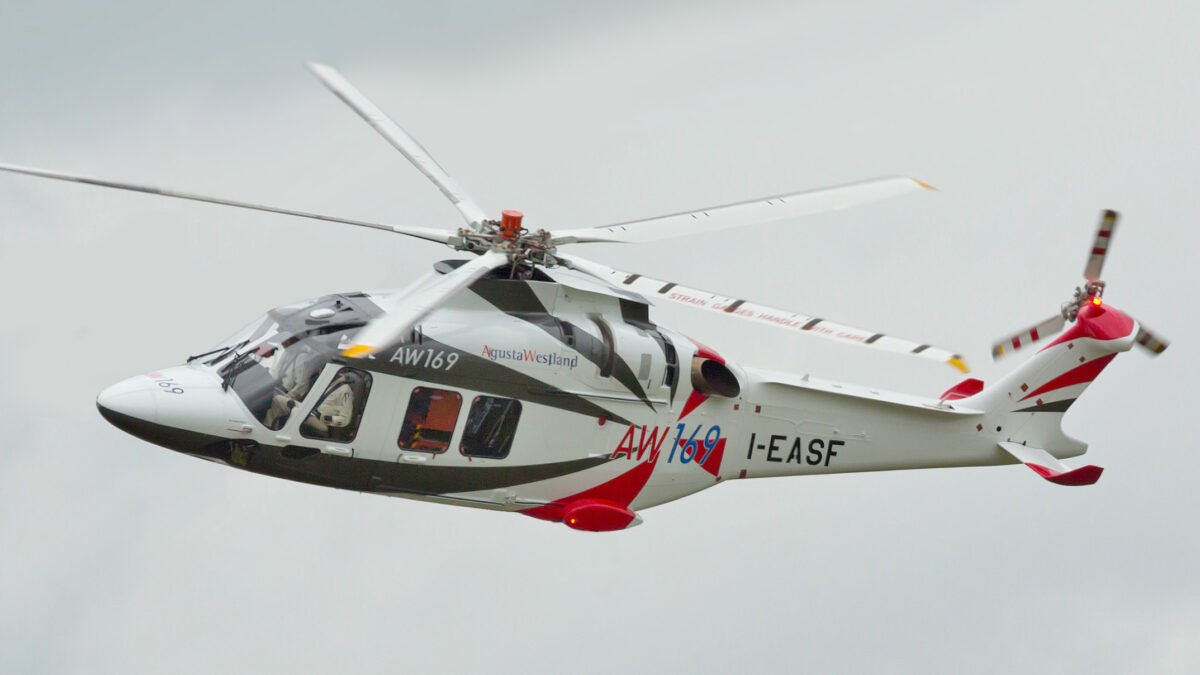

Leonardo AW169 – multi‑role light‑intermediate twin helicopter
Overview
The Leonardo AW169 (formerly AgustaWestland AW169) is a next-generation light-intermediate twin-engine helicopter designed and manufactured by Leonardo S.p.A. First certified by EASA in 2015 and FAA in 2016, it was the first new helicopter in its weight class in over 30 years. The AW169 sits between the popular AW109 and the larger AW139, offering a compelling combination of performance, cabin space, and versatility.
With over 300 AW169s on order and around 150 in service across 25 countries, logging more than 125,000 flight hours, the AW169 has proven itself across a wide range of missions. Its modern design, advanced avionics, and unique features like APU mode and all-undercarriage options make it a standout in the light-intermediate category.
Specifications
Performance & Capabilities
The AW169 is powered by two Pratt & Whitney Canada PW210A turboshaft engines, each producing approximately 1,000 shaft horsepower (SHP). This powerplant delivers outstanding performance, including a maximum speed of 160 knots (295 km/h) and a range of 440 nautical miles (815 km) with standard fuel tanks.
The helicopter features a five-bladed main rotor system that provides excellent lift, stability, and maneuverability while minimising vibration and noise. The AW169 can climb to a service ceiling of 14,500 feet (4,420 metres) and offers exceptional 'hot and high' performance, making it suitable for operations in mountainous regions and challenging climates.
Unique to the AW169 is its Auxiliary Power Unit (APU) mode, which allows the rotors to remain stopped while cabin power, environmental control, and medical equipment continue to operate—enhancing ground safety and operational efficiency.
AW169 demonstrating impressive hover and climb performance
Cabin & Avionics
Spacious and Versatile Cabin
The AW169 boasts the largest cabin in its class, with a volume of 222 cubic feet (6.3 m³). It can accommodate up to 10 passengers in comfortable seating configurations, or up to 11 in high-density layouts. The unobstructed cabin features wide 1.6-metre sliding doors for easy access, making it ideal for rapid patient loading, fast-roping, and hoisting operations.
For VIP transport, the cabin can be outfitted with luxurious seating, soundproofing, state-of-the-art entertainment systems, and panoramic windows for excellent visibility. For EMS missions, it can be configured with two stretchers (longitudinally or transversely), five medical personnel seats, and full life-support equipment with 360-degree patient access.

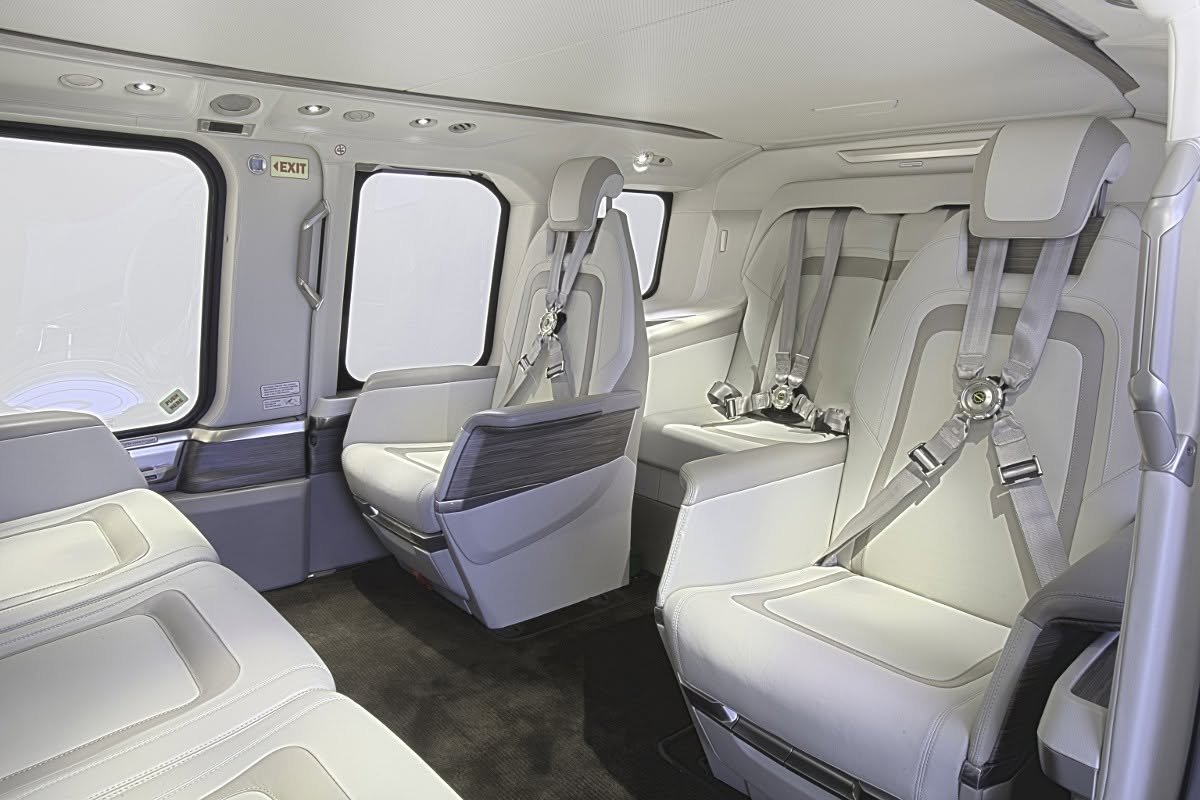

Luxurious VIP cabin with custom seating and panoramic windows
Advanced Avionics
The AW169 features a fully digital glass cockpit with touchscreen interfaces, digital maps, and night vision goggle (NVG) capability. The avionics suite includes Synthetic Vision System (SVS), Helicopter Terrain Awareness and Warning System (HTAWS), Traffic Collision Avoidance System (TCAS II), and ADS-B Out. The helicopter can be flown by a single pilot under IFR, improving safety during low-visibility operations.
The AW169 is also the world's first light helicopter with full ice protection available as an option, and the first civil-certified helicopter with IFR single-pilot Advanced SAR Modes.

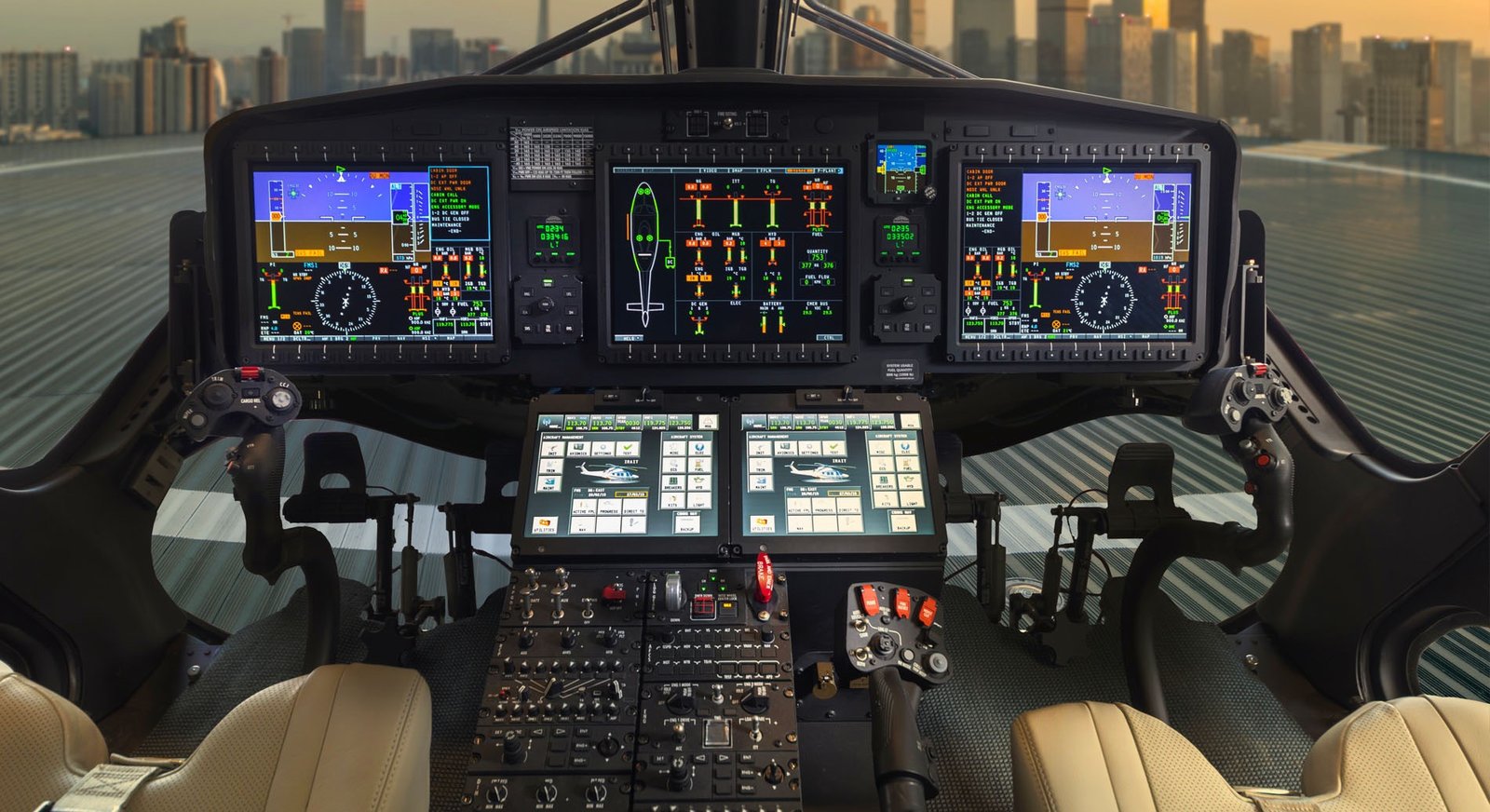

Advanced glass cockpit with Garmin G5000H touchscreen avionics
Mission Profiles
The AW169 is renowned for its versatility and can be configured for a wide range of missions:
✈️ Corporate & VIP Transport
Luxurious, spacious cabin with custom interiors, soundproofing, and entertainment systems for executive travel.
🚑 Emergency Medical Services (EMS)
Two stretchers, five medical personnel, 360° patient access, and APU mode for continuous medical equipment operation.
🔍 Search & Rescue (SAR)
Advanced SAR Modes with automated search patterns, rescue hoist, and single-pilot IFR capability.
👮 Law Enforcement
Surveillance, patrol, tactical operations, with optional mission consoles, loudspeakers, and weapon mounts.
🛢️ Offshore Operations
Transport to oil rigs and wind farms, with full compliance with offshore regulations and optional flotation devices.
🎯 Military (AW169M)
Troop transport (up to 10 troops), medevac, surveillance, Special Forces, with weapon mounts and EO/IR sensors.
⛰️ Mountain Rescue
Hot-and-high performance, hoist operations, and NVG capability for rescue in alpine and mountainous terrain.
🌊 Offshore Wind Farm Support
Reliable transport to offshore wind turbines with long-range and all-weather capability.
Operating Economics
The AW169 offers competitive operating costs for its class. The following estimates are based on typical operator data and may vary with fuel prices, maintenance schedules, and utilisation. Please contact us for a custom quote.
All figures are estimates. Actual costs depend on location, insurance, crew, and utilisation.
Pros & Cons
✅ Advantages
- Largest cabin in its class with 222 cu ft volume
- Unique APU mode for ground operations with rotors stopped
- All undercarriage options: skids, fixed, and retractable gear
- Advanced Garmin G5000H glass cockpit with touchscreen
- Single-pilot IFR capability
- Full ice protection available
- Excellent 'hot and high' performance
- Proven reliability with 125,000+ flight hours
⚠️ Considerations
- Higher acquisition cost than light singles
- Larger footprint than AW109, requiring more space
- More complex systems than older-generation helicopters
- Operating costs higher than light twins
AW169 vs Competitors
How does the AW169 stack up against other light and medium twins?
| Model | Max Speed | Range | Passengers | Max Takeoff Weight | Key Strengths |
|---|---|---|---|---|---|
| Leonardo AW169 | 160 kt | 440 nm | 10 | 4,600–4,800 kg | Cabin space, versatility, APU mode |
| Leonardo AW109 | 177 kt | 599 nm | 7 | 3,175 kg | Speed, agility, executive transport |
| Airbus H145 | 155 kt | 370 nm | 8–9 | 3,700 kg | Spacious cabin, utility |
| Bell 429 | 155 kt | 411 nm | 6–7 | 3,175 kg | Modern avionics, smooth ride |
| Leonardo AW139 | 167 kt | 574 nm | 15 | 7,000 kg | Larger cabin, longer range, heavy utility |
The AW169 positions itself as the ideal light-intermediate solution, offering more cabin space and payload than the AW109 while being more cost-effective than the larger AW139.
Development Timeline
Global Operators
The AW169 is operated by a wide range of organisations worldwide, including:
- EMS Providers: STAR Flight (Travis County, Texas), Gama Aviation (UK), and numerous European HEMS operators.
- Corporate & VIP: Private charter companies and high-net-worth individuals across Europe, the Americas, and Asia.
- Law Enforcement: Police aviation units in Italy, Argentina, Norway, and other countries.
- Offshore Operators: Energy sector support in the North Sea, West Africa, and wind farm operations in Europe and Asia.
- Military: The AW169M serves in troop transport, medevac, surveillance, and Special Forces roles.
Frequently Asked Questions
How many passengers does the AW169 carry?
The AW169 can carry up to 10 passengers in a standard configuration, with 2 crew members. High-density configurations can accommodate up to 11 passengers.
What is the maximum range of the AW169?
The AW169 has a maximum range of approximately 440 nautical miles (815 km) with standard fuel tanks.
Is the AW169 certified for IFR operations?
Yes, the AW169 is fully IFR-certified and can be flown by a single pilot under instrument flight rules, thanks to its advanced Garmin G5000H glass cockpit.
Can the AW169 operate offshore?
Yes. The AW169 is widely used for offshore transport to oil rigs and wind farms, with full compliance with stringent offshore regulations and optional flotation devices.
What engines power the AW169?
The AW169 is powered by two Pratt & Whitney Canada PW210A turboshaft engines, each producing approximately 1,000 shaft horsepower (SHP).
What is the cruise speed of the AW169?
The AW169 cruises at approximately 144–155 knots (267–287 km/h) with a maximum speed of 160 knots (295 km/h).
How does the AW169 compare with the AW109?
The AW169 is a larger light-intermediate twin, offering more cabin space, higher payload, and greater range than the AW109. The AW109 is lighter, faster, and more agile, making it better for executive transport, while the AW169 excels in EMS, offshore, and multi-mission utility roles.
Is the AW169 suitable for emergency medical services (EMS)?
Yes. The AW169 is a leading EMS platform, with a spacious cabin that can accommodate two stretchers, five medical personnel, and full life-support equipment, with 360-degree patient access.
Experience the AW169 with Safe Fly Aviation
At Safe Fly Aviation, we are committed to providing our clients with the best aviation solutions. The Leonardo AW169 is a testament to our dedication to excellence, offering unmatched performance, versatility, and safety.
Contact us today to learn more about the AW169 and how it can meet your aviation needs.
Acquisition support · Helicopter management · Training
Conclusion
The AW169 bridges the gap between light twins and medium helicopters by combining a spacious cabin, advanced avionics, excellent payload capability, and multi-role flexibility. It has become a preferred platform for operators requiring a single helicopter capable of executive transport, EMS, SAR, offshore support, and public service missions.
At Safe Fly Aviation, we are proud to offer the AW169 as part of our fleet, and we are confident that it will exceed your expectations. Explore the possibilities with the AW169 and elevate your aviation experience. Visit safefly.aero today to schedule a consultation or request a demo flight.
