The Antonov An-124: The Ultimate Guide to the World’s Heavy-Lift Aircraft

At Safe Fly Aviation, we’re thrilled to spotlight the Antonov An-124 Ruslan, a titan of the skies that redefines heavy-lift cargo transport. Known as the “Condor” by NATO, this Ukrainian-designed behemoth has been a cornerstone of global logistics since the 1980s, capable of carrying massive payloads that few aircraft can match. In this comprehensive guide, we explore the An-124’s fascinating history, unmatched capacity, innovative loading and unloading procedures, and precise dimensions in millimetres, showcasing why it’s a top choice for cargo charters worldwide. Whether you’re transporting industrial machinery, humanitarian aid, or aerospace components, Safe Fly Aviation’s expertise in cargo charters ensures your oversized loads soar safely with the An-124. Let’s dive into why this aircraft is a legend and how we can elevate your logistics needs.

A Storied History: The Birth of the An-124 Ruslan

The Antonov An-124’s journey began in the 1970s, driven by the Soviet Union’s need for a strategic airlifter to surpass the capabilities of its Antonov An-22 turboprops and rival the American Lockheed C-5 Galaxy. Designed by the Antonov Design Bureau in Kyiv, Ukraine, under the leadership of Viktor Tolmachev, the project (initially called Izdeliye 400) aimed to address the Soviet Military Transport Aviation Command’s shortfall in heavy-lift capacity. Development started in 1971, with manufacturing kicking off in 1979 at two plants: Aviastar-SP in Ulyanovsk, Russia, and Kyiv Aviation Plant AVIANT in Ukraine.

The An-124 took its maiden flight on December 24, 1982, and made a global splash at the 1985 Paris Air Show, showcasing its massive size and potential. Entering service in 1986, it initially supported military missions, transporting tanks, missile units, and troops. After receiving civil certification in 1992, the An-124 transitioned into commercial operations, becoming a lifeline for industries needing to move oversized cargo. By 2004, 55 aircraft were built, with 26 civilian models active today, operated by companies like Antonov Airlines and Volga-Dnepr. Despite production halting due to Russia-Ukraine tensions, the An-124’s legacy endures, with upgrades like the An-124-100M-150 extending its service life to 40,000 flight hours.

Notable milestones include:

• 1985: Set a world record by lifting 171,219 kg to 10,750 meters.
• 1993: Transported a 135.2-ton Siemens generator stator from Germany to India.
• 2020: Delivered critical medical supplies during the COVID-19 pandemic.

At Safe Fly Aviation, we celebrate the An-124’s history by connecting clients with its unparalleled capabilities, ensuring your cargo reaches any corner of the globe efficiently and securely.

Unrivalled Capacity: What the An-124 Can Carry

The An-124 is one of the largest cargo aircraft in the world, second only to the destroyed Antonov An-225 Mriya in gross weight and payload. Its capacity is a game-changer for industries requiring heavy or oversized transport, from energy to aerospace. Here’s a breakdown of its impressive specs:

• Maximum Payload: Up to 150,000 kg (330,693 lb) in the An-124-100M-150 variant, with standard models handling 120,000 kg (264,555 lb).
• Cargo Volume: A cavernous 1,040 cubic meters, ideal for bulky items like turbines, yachts, or aircraft fuselages.
• Range:
  • With 120,000 kg payload: 5,200 km (2,808 nm).
  • With 40,000 kg payload: 11,900 km (6,425 nm).
  • Maximum range (no payload): 14,000 km (7,559 nm).
• Cruise Speed: 800–850 km/h (497–528 mph).
• Takeoff Weight: Up to 402,000 kg (885,925 lb) in modernized variants.

The An-124’s ability to carry 90-ton hydraulic turbines, 109-ton locomotives, or even 25-meter-long yachts highlights its versatility. It’s transported everything from GE90 turbofan engines for Boeing 777s to Atlas V rockets for United Launch Alliance, proving no load is too big. For comparison, it offers a 25% higher payload than the C-5 Galaxy’s earlier models, making it a preferred choice for complex logistics.

Safe Fly Aviation specializes in cargo charter solutions, leveraging the An-124’s capacity to move your heavy equipment—whether wind turbine blades or mining machinery—anywhere in the world. Our global network ensures your cargo is handled with precision, from planning to delivery.

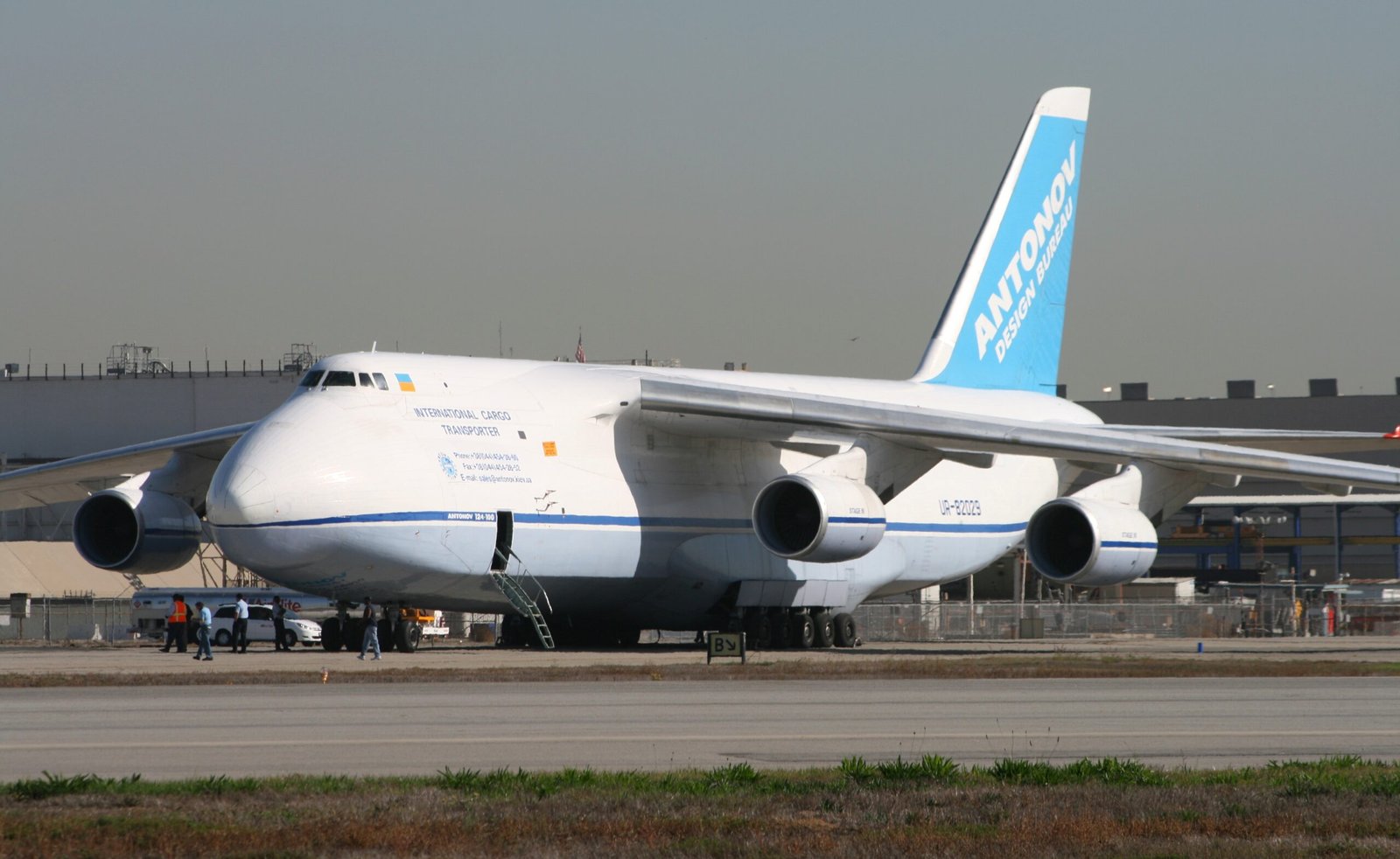

Antonov An-124 Ruslan Cargo Capacity

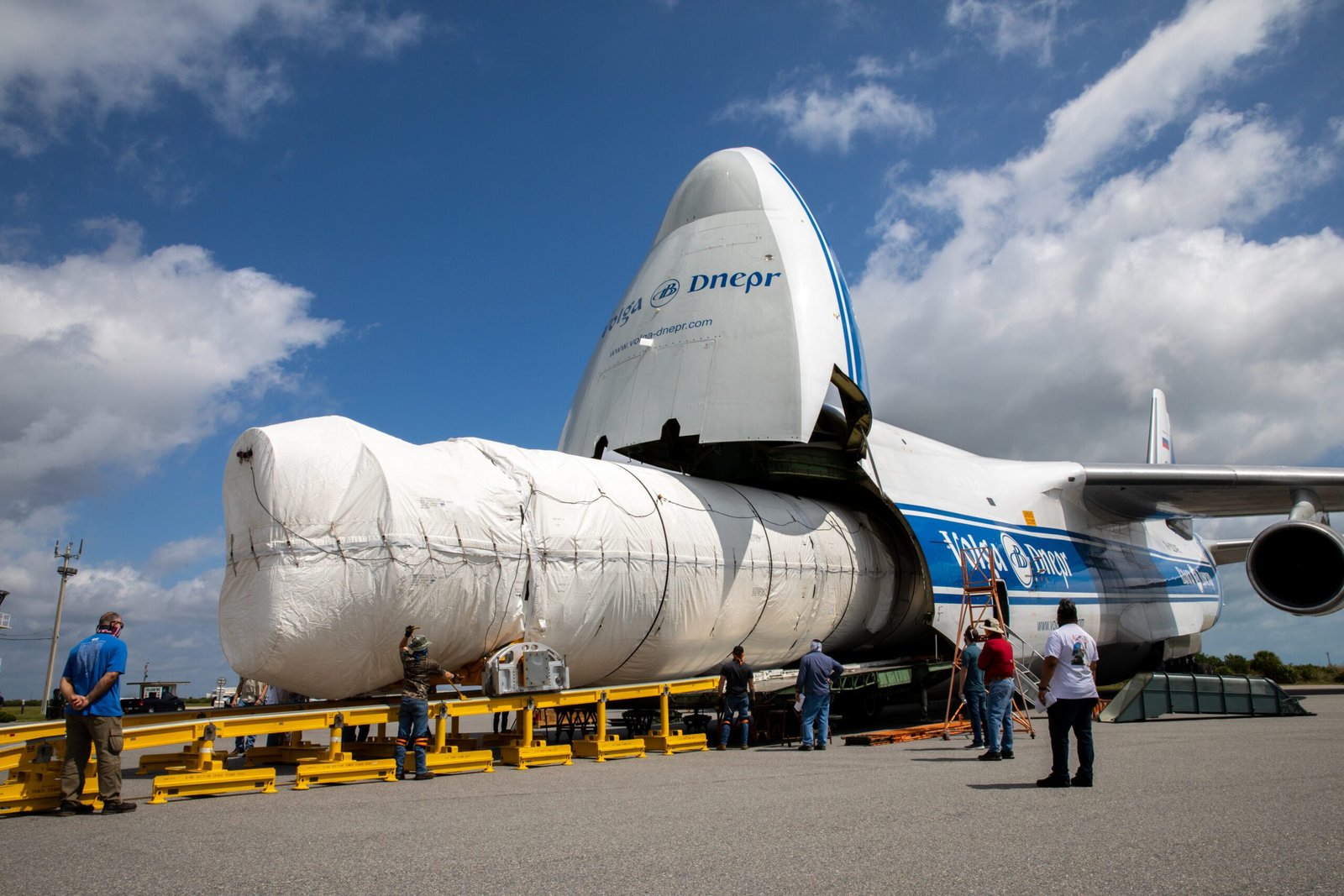

Loading and Unloading: Engineering for Efficiency

The An-124’s design is a masterclass in cargo handling, allowing it to load and unload without reliance on ground facilities—a critical feature for remote or underdeveloped airfields. Its self-sufficient cargo system streamlines operations, saving time and costs. Here’s how it works:

Key Features

• Dual Cargo Hatches:
  • Nose Hatch: The entire fuselage nose lifts upward, revealing a 6.4 m wide x 4.4 m high opening with an extendable ramp for front-loading.
  • Rear Hatch: A rear cargo door, also with a ramp, enables drive-on access, creating a “through-passage” for vehicles or long items.
• Kneeling Landing Gear: The 24-wheel, multi-bogey landing gear incorporates a kneeling mechanism, lowering the fuselage by up to 1.2 meters and adjusting the angle to ease the loading of self-propelled equipment like trucks or tanks.
• Onboard Cranes: Two overhead travelling cranes, each with a 10-ton capacity, move along the cargo hold’s length, lifting up to 30 tons combined for heavy items.
• Winches and Hoists:
  • Two electric winches (3 tons traction each) assist in pulling cargo up ramps.
  • Four electric hoists (up to 30 tons total) secure and manoeuvre non-standard loads.
• Rolling Floor: A reinforced floor with rollers allows smooth cargo movement, rated to handle 7 tons per square meter.
• Tie-Down System: Over 100 attachment points and nets ensure cargo stability, critical for items up to 120 tons via winching.

Loading Procedure

1. Preparation: The aircraft kneels to align the cargo hold with ground level or truck beds. Ground crews verify payload dimensions and weight distribution.
2. Access: The nose or rear hatch opens, deploying ramps (up to 12 meters long when extended). For oversized loads, the nose hatch is preferred due to its width.
3. Loading:
   • Self-propelled cargo (e.g., vehicles) drives up ramps.
   • Non-mobile cargo is winched or hoisted using cranes, with rollers aiding movement.
   • Specialized frames or cradles (e.g., for generators) distribute weight evenly.
4. Securing: Cargo is lashed with straps and nets, anchored to floor points. Loadmasters use digital systems to calculate centre-of-gravity balance.
5. Final Checks: Hatches close, and the aircraft returns to standard height. Avionics confirm load stability before takeoff.

Unloading Procedure

Unloading mirrors loading in reverse:

1. The aircraft kneels, and hatches open.
2. Secured cargo is unstrapped, with cranes or winches guiding it onto ramps.
3. Self-propelled items drive off; others are lowered to ground vehicles or platforms.
4. The hold is inspected, and the aircraft is prepped for its next mission.

This efficiency shines in real-world examples, like the 1986 transport of an 80-ton hydro turbine wheel from Ukraine to Uzbekistan, completed despite minimal ground support. The An-124’s autonomy makes it ideal for disaster relief, delivering humanitarian aid to earthquake zones or flood-stricken regions without delay.

With Safe Fly Aviation, you tap into this seamless process for your cargo charter needs. We coordinate every step—permits, customs, and ground handling—ensuring your oversized cargo moves effortlessly, no matter the destination.

The An-124’s cargo hold is a marvel of engineering, designed to accommodate massive and irregularly shaped loads. Here are the exact dimensions in millimetres, highlighting its ability to handle outsized freight:

• Cargo Hold (Internal):
  • Length: 36,500 mm (36.5 meters or 119.75 ft).
  • Width: 6,400 mm (6.4 meters or 21 ft) at the floor, narrowing slightly upward.
  • Height: 4,400 mm (4.4 meters or 14.43 ft) at the centre, with a slight arc due to the fuselage curve.
• Cargo Hatch Openings:
  • Nose Hatch: 6,400 mm wide x 4,400 mm high.
  • Rear Hatch: 6,400 mm wide x 4,400 mm high.
• Ramp Dimensions:
  • Length: 6,000 mm (extendable to 12,000 mm).
  • Width: 6,400 mm.
• Floor Area: Approximately 190 square meters, supporting up to 1,040 cubic meters of volume.
• External Aircraft Dimensions:
  • Wingspan: 73,300 mm (73.3 meters).
  • Length Overall: 69,100 mm (69.1 meters).
  • Height: 21,080 mm (21.08 meters).
• Door Sill Height (Kneeling): Adjustable from 1,500 mm to 2,500 mm, optimizing access.

These dimensions allow the An-124 to swallow loads like:

• A 25-meter-long yacht (fitting lengthwise with room to spare).
• Main battle tanks (e.g., T-72s, up to two side-by-side).
• Wind turbine blades (up to 35 meters, loaded diagonally).
• Satellites or rocket stages, secured in custom cradles.

The hold’s pressurized environment (unlike some freighters) protects sensitive cargo, while its 10.5-meter clearance under the crane supports tall items like construction cranes. The An-124’s ability to handle 6.4-meter-wide cargo surpasses most competitors, making it a go-to for projects like transporting Liebherr cranes or Tu-204 fuselages.

Safe Fly Aviation ensures your cargo fits perfectly, using 3D modelling to plan loading within these dimensions. Our worldwide cargo charter services guarantee your equipment—whether a 120-ton generator or a delicate satellite—arrives on time and intact.

Why the An-124 Excels in 2025

The An-124 remains unmatched for several reasons:

• Versatility: From military gear to humanitarian supplies, it handles any load, anywhere.
• Autonomy: Operates on unpaved runways or remote airstrips, thanks to its 24-wheel gear and high-wing design.
• Efficiency: Onboard systems reduce ground support costs, speeding up turnarounds.
• Proven Record: Over 30 world records, including the heaviest single load ever airlifted (132.4 tons in 1993).

Modern upgrades, like FADEC-compatible D-18T engines and quadruple-redundant avionics, enhance reliability. The Garmin G1000H NXi-inspired navigation suite (in newer models) includes GPS, weather radar, and IFF, ensuring precision over long ranges. Its 540 configurations were tested during design-optimized aerodynamics, with a supercritical wing reducing drag for fuel efficiency.

Challenges, like Russia-Ukraine tensions halting production, are offset by ongoing retrofits, with operators like Antonov Airlines relocating to Leipzig, Germany, for stability. The An-124’s $70,000–$100,000 per flight hour charter cost reflects its value, delivering unmatched capability for high-stakes missions.

Safe Fly Aviation: Your Partner for An-124 Cargo Charters

At Safe Fly Aviation, we believe the Antonov An-124 is more than an aircraft—it’s a solution to the world’s toughest logistics challenges. Our global cargo charter services harness the An-124’s power to deliver your oversized cargo, whether it’s a power plant component to Africa or emergency supplies to Asia. We offer:

• Tailored Planning: From permits to load balancing, we optimize every detail.
• Global Reach: Access to An-124 operators worldwide, with 24/7 support.
• Safety First: Rigorous oversight ensures compliance with ICAO and FAA standards.
• Transparency: Competitive quotes with no hidden costs, maximizing value.

Imagine moving a 100-ton oil rig part from Houston to Dubai or disaster relief tents to a Pacific island. With Safe Fly Aviation, these missions become a reality, backed by our decades of expertise and passion for aviation excellence.

The Future of the An-124

As we look to 2030 and beyond, the An-124’s role in global logistics remains secure. Though geopolitical hurdles linger, proposals for re-engining with Western options like GE’s CF6 or Russia’s PD-35 promise extended range and efficiency. Its use in NATO’s SALIS program and contracts with companies like Boeing and Airbus underscore its strategic importance. Whether supporting space launches or green energy projects, the An-124 will continue breaking barriers.
